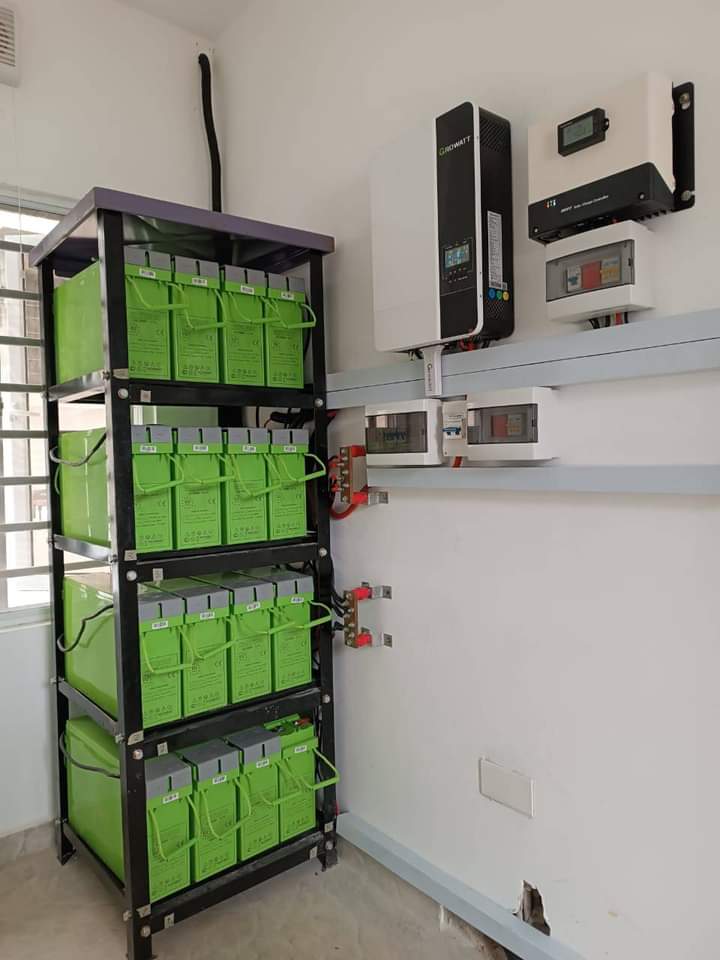

20kva-solar-system-installation-lagos
Category: Tags: , , Brand:

20kVA 48V Complete Solar System Package With 38.4kWh Battery – High-Capacity All-In-One Solution

In Stock

The complete 20kVA solar system package is engineered for heavy-duty residential estates, commercial facilities, hospitals, and industrial operations requiring uninterrupted 24/7 power independence.

  • Inverter Capacity: 20kVA / 48V Heavy-Duty Pure Sine Wave Hybrid Inverter

  • Solar PV Array: 18.88 kW Total PV Capacity ($32 \times 590\text{W}$ Jinko N-Type Monocrystalline Panels)

  • Energy Storage Capacity: 38.4 kWh Deep-Cycle Battery Bank ($16 \times 12\text{V } 200\text{Ah}$ Monbat AGM EU Batteries)

  • System Architecture: 48V DC Busbar Configuration with Integrated High-Voltage MPPT Solar Charge Controllers

  • Typical Load Support: Central Air Conditioners (Inverter & Non-Inverter), Deep Freezers, Commercial Pumping Machines, Printing Equipment, Lighting, and IT Infrastructure

  • Grid / Generator Interaction: Auto-generator start support (dry contacts) with seamless grid bypass and rapid switchover ($< 10\text{ms}$)

  • Monitoring: Built-in Wi-Fi / GPRS remote cloud data monitoring via mobile app & web portal

  • Warranty Coverage: Comprehensive manufacturer warranty across inverter, panels, and battery bank

Original price was: ₦15,758,000.00.Current price is: ₦13,758,000.00.

Category: Tags: , , Brand:

Description

This 20kVA solar system package is designed for homes and offices with heavy, round-the-clock power demands, the kind that outgrow a standard 10kVA setup.

20kVA solar system engineered to run multiple air conditioners, deep freezers, pumps, and full office equipment loads simultaneously, without the load-shedding compromises smaller systems force you into.

The 20kVA solar system package pairs a 20kVA hybrid inverter with a large-format Jinko solar array and a robust Monbat AGM battery bank, mounted on a heavy-duty reinforced metal battery-rack and backed by complete protection devices for safe, long-term operation.

Inverter

  • 1 × 20kVA / 48V Hybrid Inverter
  • Pure sine wave output — safe for sensitive electronics
  • Hybrid-ready: accepts input from solar, battery, and grid
  • Solar charge controller matched to the 18.88kW array
  • LCD display with intelligent energy management
  • Parallel-capable for future capacity expansion

Solar Panels

  • 32 × Jinko 590W Solar Panels
  • Total solar generation capacity: 18,880W (18.88 kW)
  • High-efficiency monocrystalline cells with strong low-light performance
  • Durable, weather-resistant build for Nigeria’s outdoor conditions
  • Backed by Jinko’s manufacturer power warranty

Battery Bank

  • 16 × Monbat 12V 200Ah AGM Batteries
  • Configuration: 48V, 800Ah — 38.4kWh nominal capacity
  • Maintenance-free, spill-proof AGM design
  • Deep-cycle rated for daily solar charge/discharge use
  • Mounted on a heavy-duty, multi-tier battery rack for safe, organized installation

Accessories & Protection

  • Heavy-duty steel battery rack (multi-tier)
  • Battery interconnecting cables and busbars
  • Solar-grade DC cable and AC output cable
  • Solar roof mounting rails and rack
  • AC/DC isolators, circuit breakers, and protection switches
  • Surge protectors and grounding kits
  • Battery-bank fusing and disconnects
  • All components conform to international safety and installation standards

TYPICAL RESIDENTIAL LOAD SUPPORT (UP TO 20,000W)

This system comfortably supports a large home or duplex, including:

  • 4 × 1.5HP inverter air conditioners
  • 2 × Freezers + 2 × Refrigerators
  • 60 × 15W LED bulbs (900W total)
  • 6 × Ceiling fans
  • 5–6 × LED TVs
  • WiFi router + Decoders (multiple rooms)
  • 1 × Washing machine
  • 1 × Borehole water pump (1–1.5HP)
  • Kitchen appliances (microwave, blender, kettle)
  • 4–5 laptops + chargers

Total household load:15 kW average, with buffer for surges and additional devices.

TYPICAL OFFICE LOAD SUPPORT (UP TO 20,000W)

Ideal for a full office floor or small office building:

  • 25–30 desktop computers + monitors
  • 2–3 laser printers
  • 1–2 photocopiers/scanners
  • 2–3 split unit ACs (1.5HP each)
  • 60–80 energy-saving lights
  • Server rack / small data cabinet
  • Networking: routers, switches, WLCs, DVRs, IP cameras, phones
  • Reception TVs, POS devices
  • Water dispensers / kettle

Total office load: 16–18 kW peak, with buffer for short-term surges.

Nationwide Delivery: The 20kVA solar system Available across Nigeria with professional installation support.
