Description

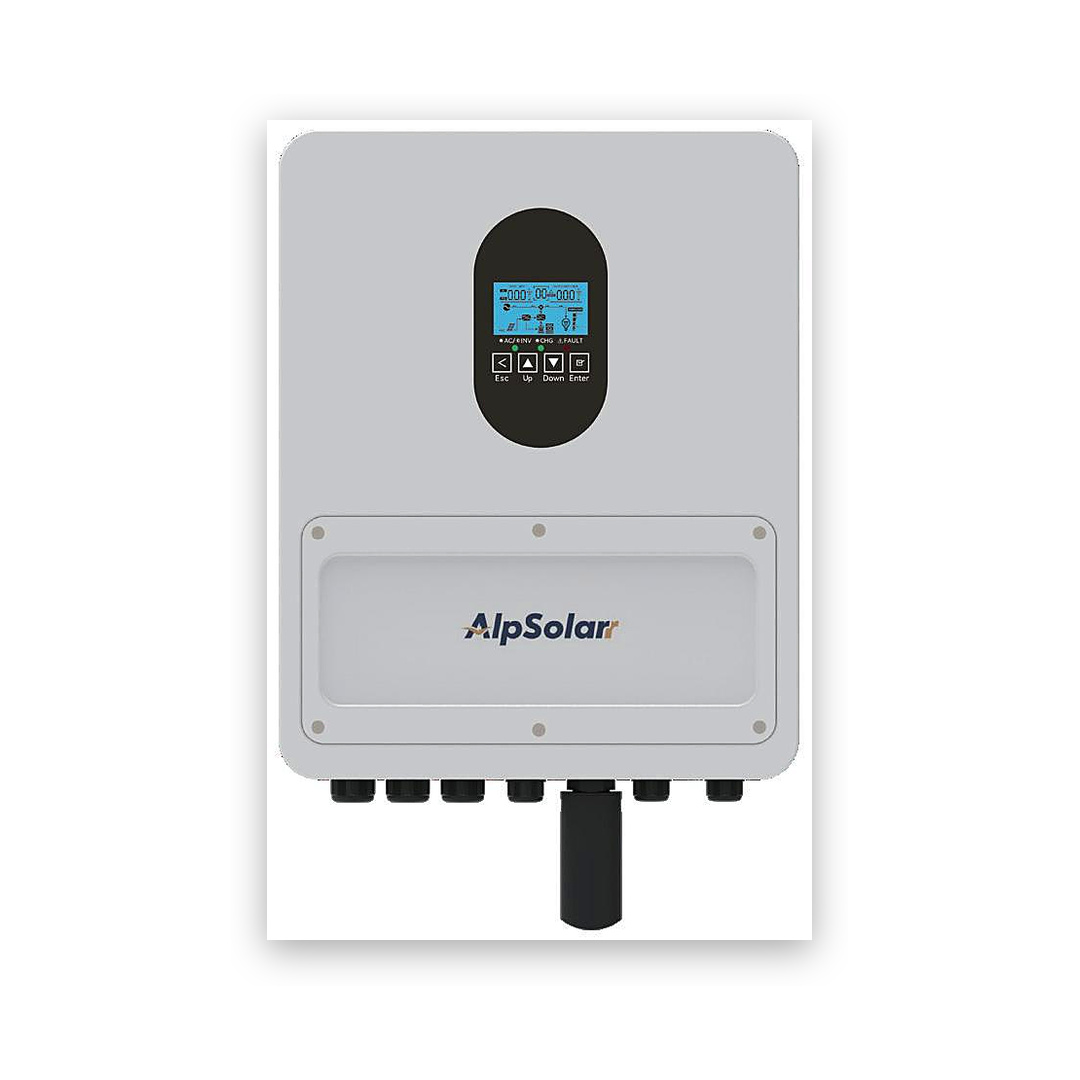

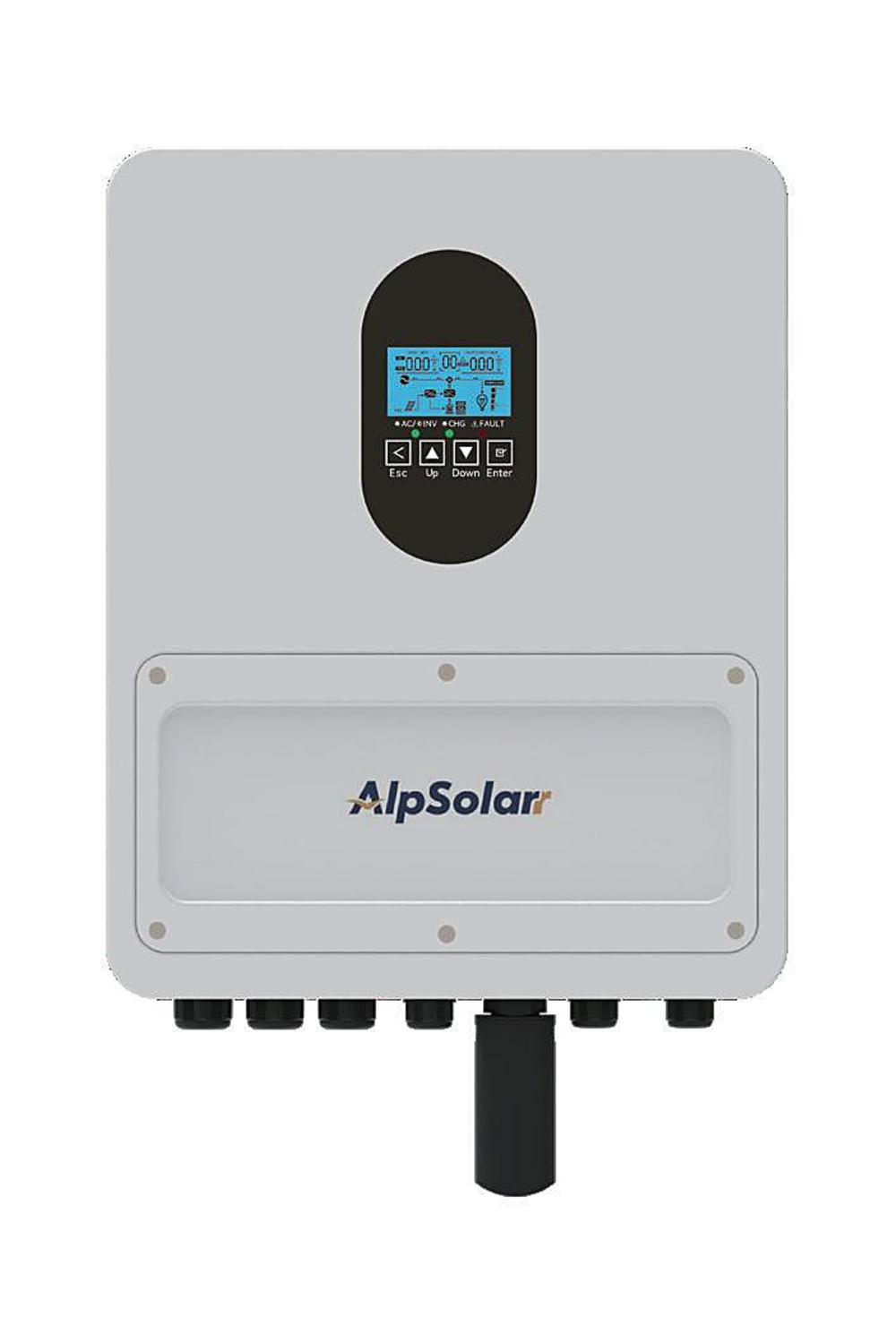

The Alpsolar Pulse S3 6kW Hybrid Inverter is a powerful and intelligent solar energy management system designed for modern homes, offices, and small commercial solar installations in Nigeria.
Built with advanced MPPT solar technology, lithium battery compatibility, and intelligent load management, this inverter allows you to combine solar panels, battery storage, generator backup, and grid electricity into one efficient hybrid power system.
With 6,000W continuous output power, the inverter can reliably power essential household and office loads such as refrigerators, televisions, lighting systems, networking equipment, fans, and air conditioning units while maintaining high energy efficiency.
The Pulse S3 series features high PV input capacity and smart solar optimization, allowing the inverter to harvest more energy from solar panels even during low sunlight conditions.
Designed for demanding environments, the inverter features an IP66 protection rating, making it suitable for both indoor and outdoor installations.
The system supports lithium-ion and lead-acid battery technologies, making it compatible with modern 48V LiFePO4 battery banks and other solar storage systems.
For larger energy systems, multiple units can be connected in parallel to increase total system capacity, making the Alpsolar 6kW inverter a scalable solution for growing power demands.

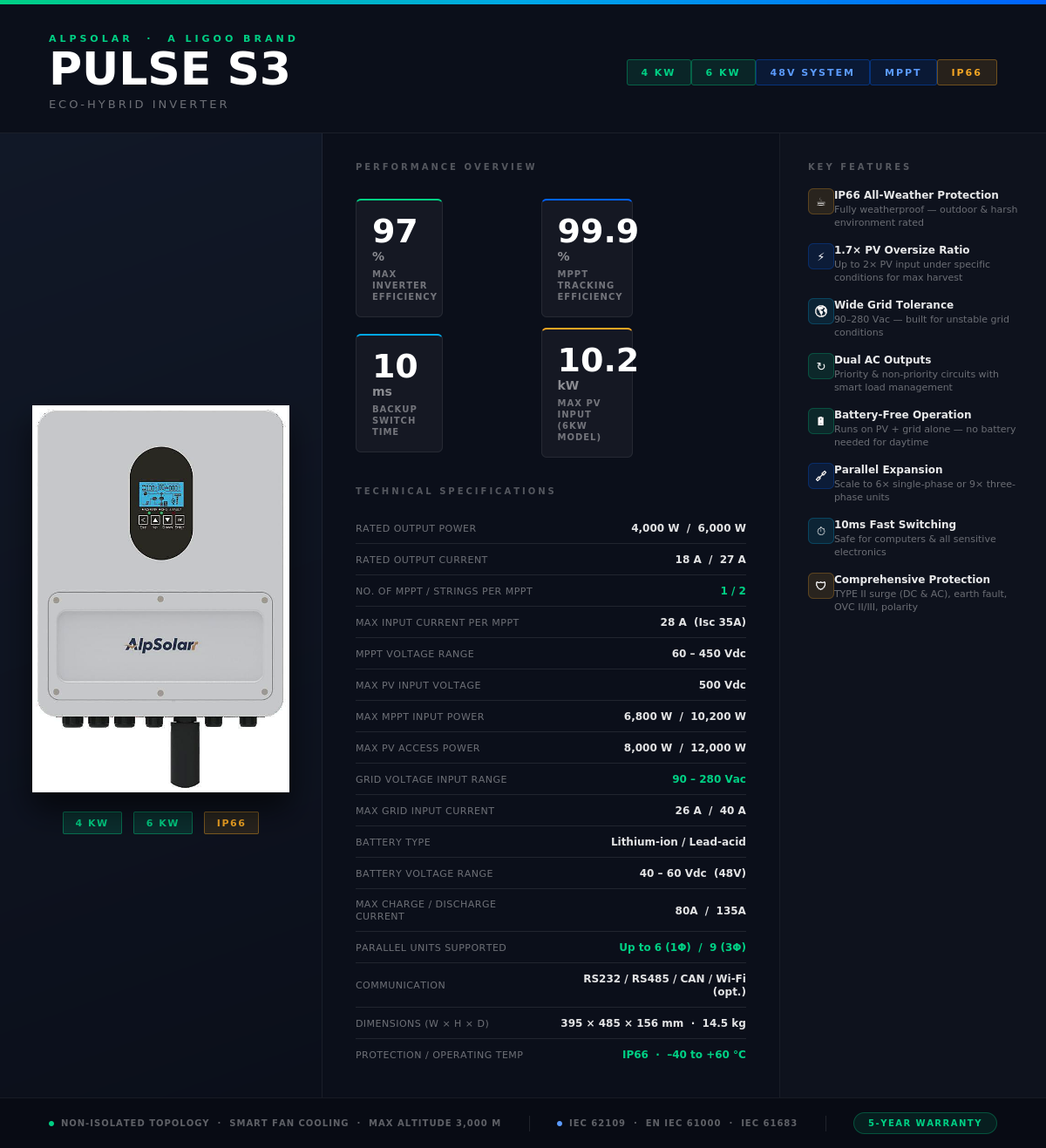

Key Features
• 6kW Hybrid Solar Inverter
Reliable power output for homes and offices.
• Advanced MPPT Solar Optimization
Supports up to 10,200W MPPT solar input power.
• Large Solar Capacity Support
Maximum PV access power up to 12,000W solar panels.
• IP66 Weather Protection
Designed for outdoor and indoor installation.
• Battery-Free Operation Mode
Can operate directly from solar and grid without batteries.
• Parallel Expansion Capability
Supports parallel connection of multiple inverters for larger systems.
• Wide Grid Voltage Support
Works reliably between 90V – 280V grid voltage.
• High Efficiency Solar Conversion
Up to 97% inverter efficiency and 99.9% MPPT tracking efficiency.
• Smart Load Management
Dual AC outputs allow intelligent distribution of essential and non-essential loads.
Ideal Applications
The Alpsolar 6kW Hybrid Inverter is suitable for:
• Residential solar systems
• 2–4 bedroom homes
• Small office solar installations
• Retail stores and shops
• Clinics and medical facilities
• Backup power systems
Warranty & Support
Manufacturer Warranty: 2 Years
• System sizing consultation
• Installation guidance
• Monitoring configuration
• Technical support
