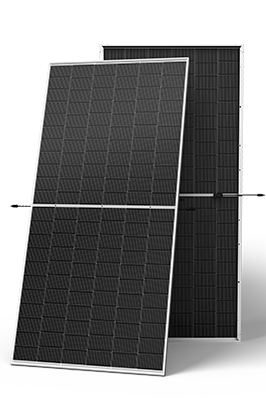

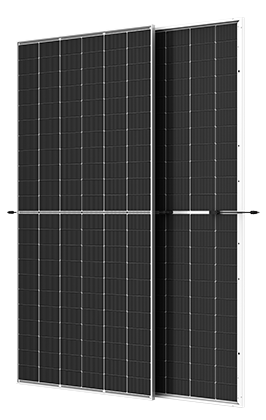

Trina Solar 620W Bifacial Solar Panel – High Efficiency N-Type TOPCon Technology

In Stock

  • Maximum Power Output: 620W

  • Maximum Efficiency: 23.0%

  • Solar Cell Type: N-type TOPCon Monocrystalline

  • Module Dimensions: 2382 × 1134 × 35 mm (85.51 × 51.30 × 1.38 inches)

  • Weight: 28.8 kg (63.5 lb)

  • Front Glass: 3.2 mm anti-reflective tempered glass

  • Frame: 35 mm anodized aluminum alloy

  • No. of Cells: 132

  • Connector: MC4 EVO2 / TS4 Plus

  • Junction Box: IP68 rated

  • Cable: 4.0 mm², customizable length

  • Maximum System Voltage: 1500V DC (IEC/UL)

  • Maximum Series Fuse Rating: 35A

  • Operating Temperature: -40°C to +85°C

  • Mechanical Load: 5400 Pa (positive), 2400 Pa (negative)

  • Temperature Coefficient of Power: -0.29% / °C

  • Certifications: IEC61215, IEC61730, UL61730, ISO 9001, ISO 14001, ISO 14064, ISO 45001

Original price was: ₦138,000.00.Current price is: ₦133,000.00.

Description

Trina Solar Vertex 620W bifacial solar panel, engineered for maximum energy yield, superior reliability, and long-term performance.

Designed with advanced N-Type TOPCon monocrystalline cell technology, this panel delivers outstanding efficiency and durability, making it the ideal choice for residential, commercial, and utility-scale projects.

  • High Power Output: Up to 620W maximum power.

  • Superior Efficiency: Module efficiency up to 23.0% for optimal energy production.

  • Bifacial Design: Power bifaciality of 75±5% with additional energy gain from the rear side.

  • Durability & Reliability: PID-resistant, micro-crack resistant, and certified to withstand extreme weather conditions including 55mm hailstones.

  • Lower Degradation: Just 1% first-year degradation and only 0.4% annual power attenuation.

  • Comprehensive Warranty: 12-year product warranty and 25-year power guarantee.
