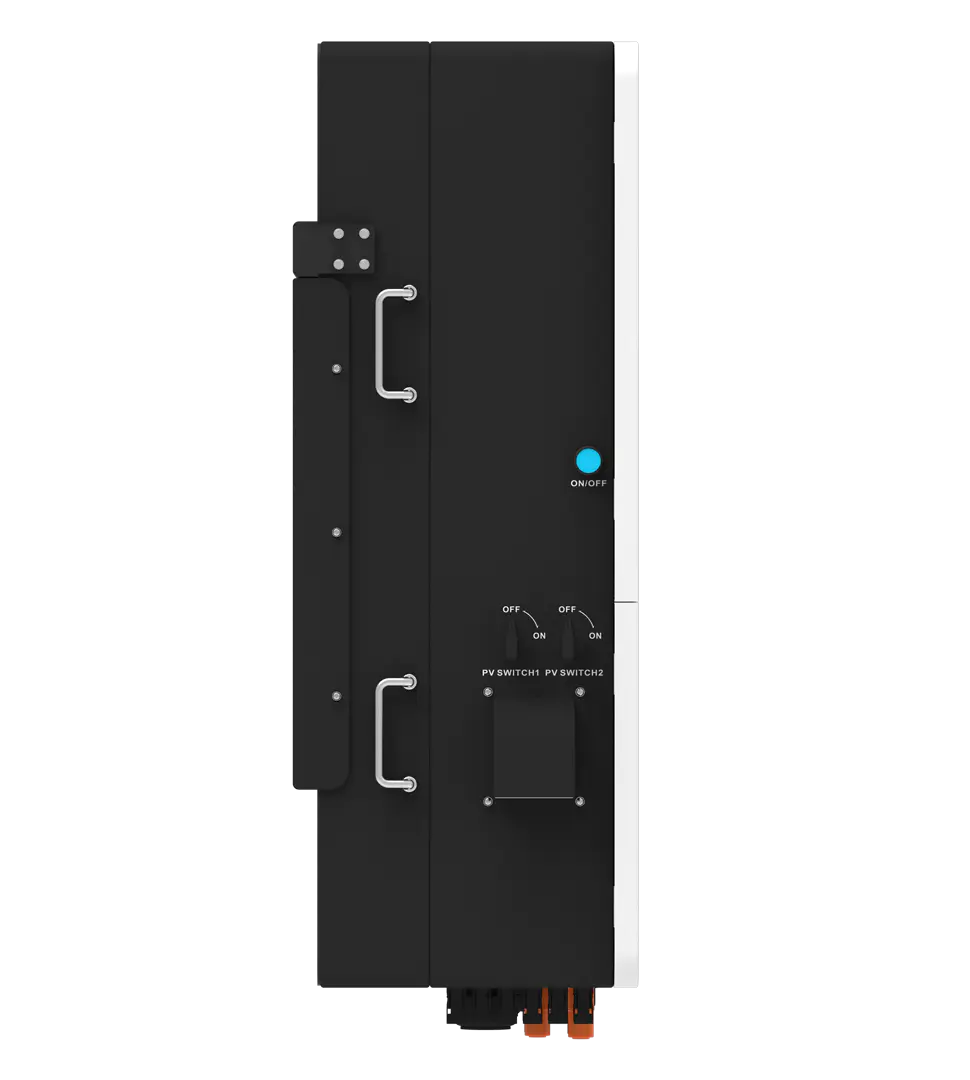

Deye 80KW Three Phase Hybrid Inverter – SUN-80K-SG02HP3-EU-EM6

In Stock

  • Model: SUN-80K-SG02HP3-EU-EM6
  • Rated AC Power: 80,000W
  • Max PV Input Power: 160,000W
  • Battery Type: Lithium-ion
  • Battery Voltage Range: 160V – 1000V
  • Number of Battery Inputs: 2
  • Max Charging Current: 160A
  • Max Discharging Current: 160A
  • Charging Strategy: Self-adaptive to battery BMS
  • AC Input / Output Power (Rated): 80,000W
  • Max AC Apparent Power: 88,000VA
  • Rated AC Current: 133.4A
  • Max AC Current: 121.3A
  • Rated Voltage: 230/400V (3-phase)
  • Voltage Range: 0.85Un – 1.1Un
  • Rated Frequency: 50Hz / 60Hz
  • Frequency Range: 45Hz – 55Hz / 55Hz – 65Hz
  • Grid Connection: 3L+N+PE
  • MPPT Voltage Range: 150V – 850V
  • Start-up Voltage: 180V
  • Rated PV Voltage: 650V
  • No. of MPPT Trackers / Strings: 6 / 2+2+2
  • Max PV Input Voltage: 1000V
  • Max Operating PV Current: 200A
  • Peak Off-grid Power: 1.5x rated (for 10s)
  • Power Factor Range: 0.8 leading – 0.8 lagging
  • THDi: <3%
  • DC Injection: <0.5% of rated current

Original price was: ₦12,000,000.00.Current price is: ₦10,800,000.00.

Categories: , Tag: Brand:

Description

Upgrade your energy infrastructure with the Deye 80KW Hybrid Inverter, designed for high-performance solar systems with both on-grid and off-grid capability.

Built to power large commercial, industrial, and estate-scale projects, this inverter offers massive energy handling, diesel generator support, smart battery management, and remote monitoring.

Available for nationwide distribution, this model comes with a 5-year warranty and full technical support for your peace of mind.



* Three Phase Hybrid Inverter – Ideal for commercial and large-scale applications

* Compatible with high voltage lithium-ion batteries (160V – 1000V)

* Maximum charging/discharging current: 160A

* Supports diesel generator input

* AC-coupled design – great for retrofitting existing systems

* Up to 10 units in parallel (on-grid & off-grid)

* 6 adjustable time periods for smart battery charge/discharge control

* 100% unbalanced output support across phases

* Max. inverter efficiency: 98.7%

* MPPT efficiency: >99%

* Euro efficiency: 98.1%

* IP65 rated – suitable for outdoor installations

* Monitoring via WiFi / GPRS / LAN / Bluetooth / 4G (optional)

* Advanced protection: DC/AC surge protection, anti-islanding, thermal & short circuit protection
